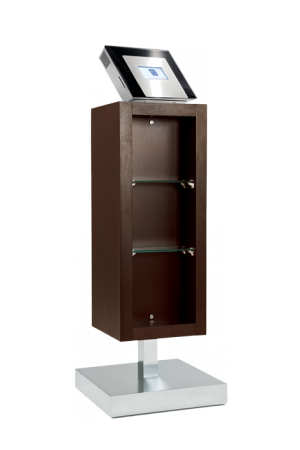

در این دستگاه دو سیستم رادیوفرکانسی و کویتشن برای لاغری با هم ترکیب شده است. ساخت کشور ایتالیا http://www.q-italy.it/english/q-system-rf-csc/
Q System RF C.S.C. cares for the body by performing a complete treatment , which not only fights localised fat and reduces cellulite, but also firms, compacts and tones the tissues at the same time . The result is a slim, reshaped body, with a visibly better-toned, more youthful skin . The efficacy of the Q System RF C.S.C. treatment derives from the dual technology used: controlled selective cavitation combined with modulated monopolar and bipolar radiofrequency. Cavitation is a technique which uses low frequency ultrasound waves, that produce tiny bubbles in fatty tissues. These bubbles break the cell membranes, and the fatty acids they contain are released into the circulatory system.After a drainage massage, the fatty acids are quickly metabolised and disposed of by the lymph and urine circuits. Radiofrequency supports this therapy synergetically with an effective body firming and toning treatment . Radiofrequency beauty treatment uses the heat transfer principle: during the treatment, the radiofrequency develops heat which is transferred to the deepest layers of the skin, modifying the structure of the dermis at different depths . The heat produced by the radiofrequency causes the collagen fibres to contract, triggering stretching, compacting and firming of the skin: a real natural lifting effect .
Effective treatment in total safety Q System RF acts an effective therapy against cellulite and localised fat deposits in various parts of the body, integrating it with two successive treatment modes . Suitable for : • Removing localised fat • Remodelling body shapes and volumes in few sessions • Personalised treatments on specific areas • Reducing cellulite • Attenuating the orange peel effect • Re-activating the peripheral blood circulation • Improving the lymphatic drainage • Skin relaxation treatments • Tissue toning treatments • Anti-age treatments • Redefining facial contours Technical features Power input: 230 V /- 10% 50-60 Hz Max power absorbed: 200 Watt External protection: 2 fusibili/fuse da 6,3 A- 250 V . Size in mm: L 400 x P 400 x H 1210 Weight: 30 Kg Classification: Class 1 – Tipo BF (Ref: CEI 62-39) Cavitation Power transducer: 50 Wpp Dimension transducer: 50 mm Middle frequency: 34/38 KHz /- 2KHz Sweeping frequency: /- 1.600 Hz Outputs: 2 indipendenti Handpieces: 2 Radiofrequency Emission frequency: 470 KHz /- 10% Max power emission: 170 Watt /- 10% Emission mode: monopolar/bipolar capacititve Outputs: 2 indipendenti/indipendent Handpieces: 2
